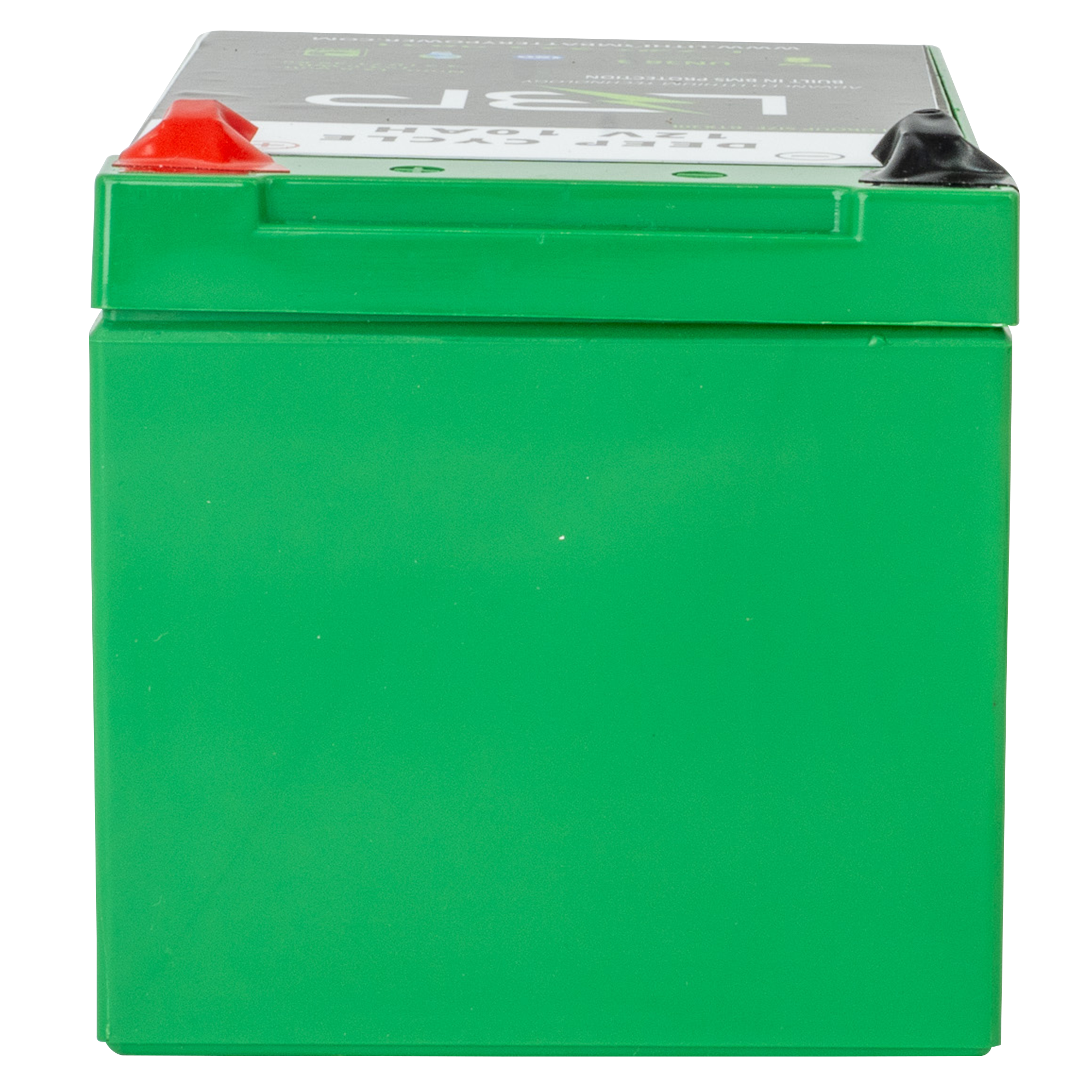

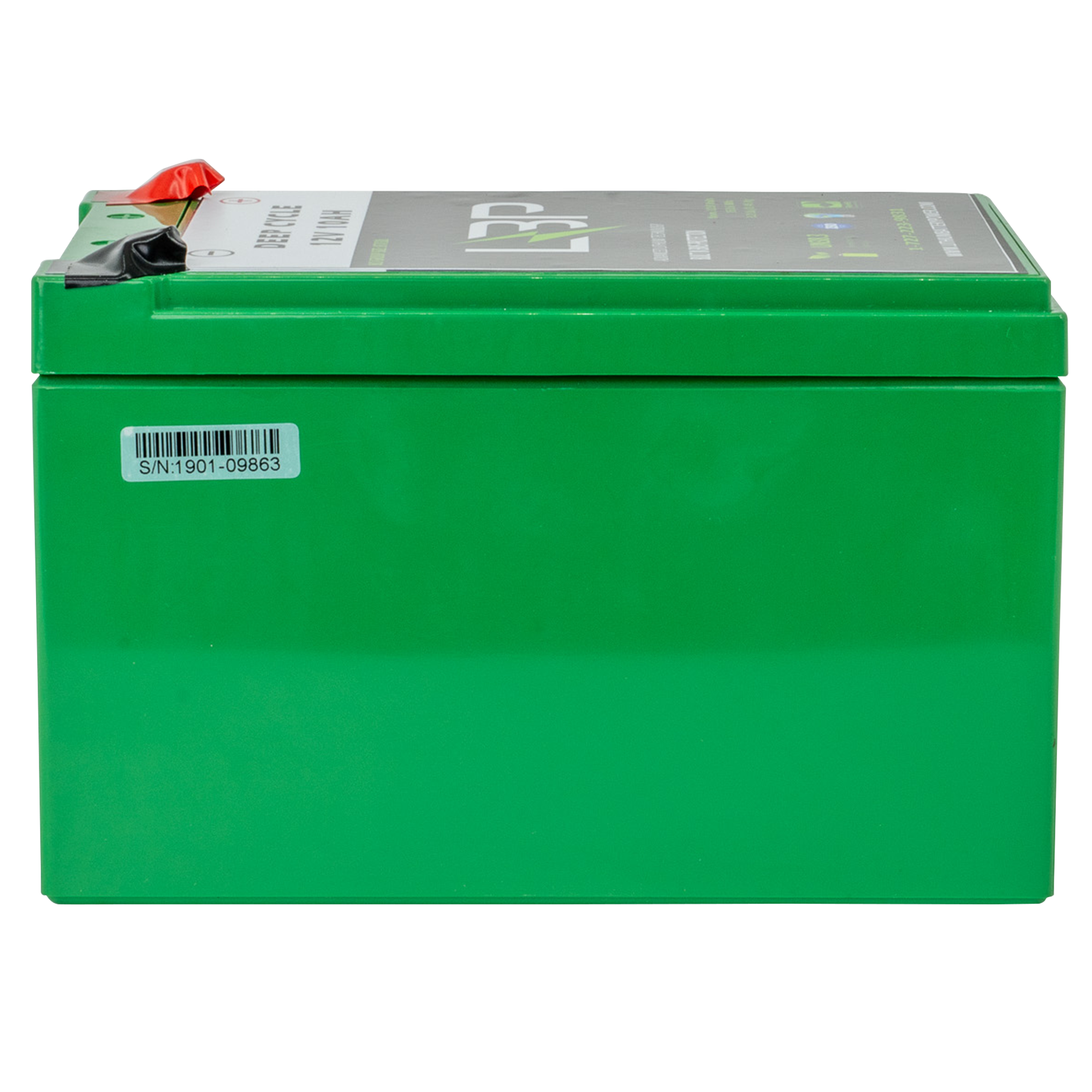

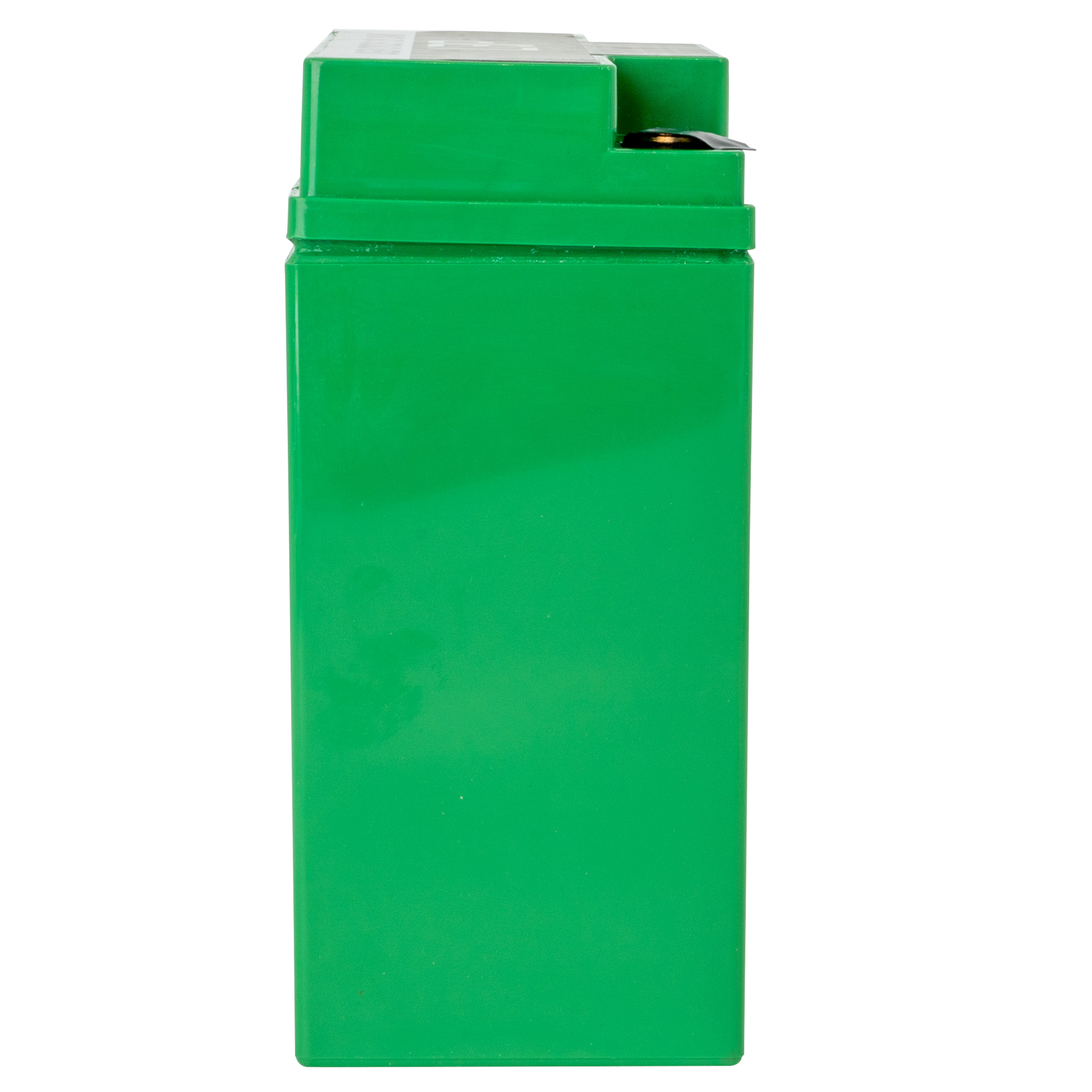

LBP 12V 10Ah Lithium Battery
*Note - This new and improved version of our popular 12V 10Ah battery features a more advanced BMS for improved thermal management, upgraded lithium cells for a longer charge life, and a sleek case.
The Lithium Battery Power 12V 10Ah lithium battery is a deep cycle battery built on patented Lithium Iron Phosphate (LiFePO₄) chemistry. The LBP12V10Ah features a built-in automatic battery management system (BMS) that keeps the lithium battery running at peak performance while preventing overheating, overcharging, and maximizing cell cycle life. Designed as a "drop-in replacement," this is a plug-and-play option for any application currently using a lead acid, gel, or AGM style battery.
Download the Lithium Battery Spec Sheet
Features
- >4000 Cycles at 80% depth of discharge
- Create systems 12-1000 Volts
- Series and/or Parallel operation
- Automatic Cell balancing system
- IP56 water and dust resistant YTX12 case
- Temperature monitoring
- Exceptional voltage stability
- Rugged mechanical design
- Maintenance free
- No hydrogen generation or gas
- <70% the weight of similarly sized SLA batteries
- Stock available for quick delivery in US or worldwide
Benefits of Lithium Battery Power
- Save weight and space.
-
Increase your boat or vehicle's top speed.
-
Enjoy rapid charging and longer run time between charges.
-
Enjoy peace of mind knowing that you have the safest and most dependable option on the market, built in the USA.
- 10 year warranty.
*DO NOT TORQUE POST MORE THAN 5LB(FT)/60LB(IN)*
Specifications |
|
Nominal Voltage |
12.8V |
Nominal Capacity @ 1C |
12Ah |
Charge Voltage |
14.45V - 14.60V |
Charge Current: Recommended |
< 6A |
Discharge Voltage Minimum |
10V |
Discharge Current Max (Constant) |
12A |
Pulse Current |
100A |
Weight |
3.2lb/1.45kg |
BCI Group Number |
YTX12 |
Terminals (TPI) |
M6 x 1.25 |
Dimensions L x W x H (w/Terminals) |
5.9" x 3.85" x 3.85" |
Advanced Specifications |
|
Operating Temperature |
Charge: -10°C to 45°C Discharge: -20°C to 60°C |
Storage Temperature |
-40°C to 50°C |
Optimal Humidity |
5% to 95% |
Water/Dust Resistance Rating (IP) |
IP 56 |
Ingress Protection: Solids/Dust |
5 Rating: Protected against harmful deposits of dust |
Ingress Protection: Water/Moisture |
6 Rating: Protected against strong jets of water |
Certifications |
UL1642, FFC Class B |
Shipping Classification |
UN 3480, Class 9 |
