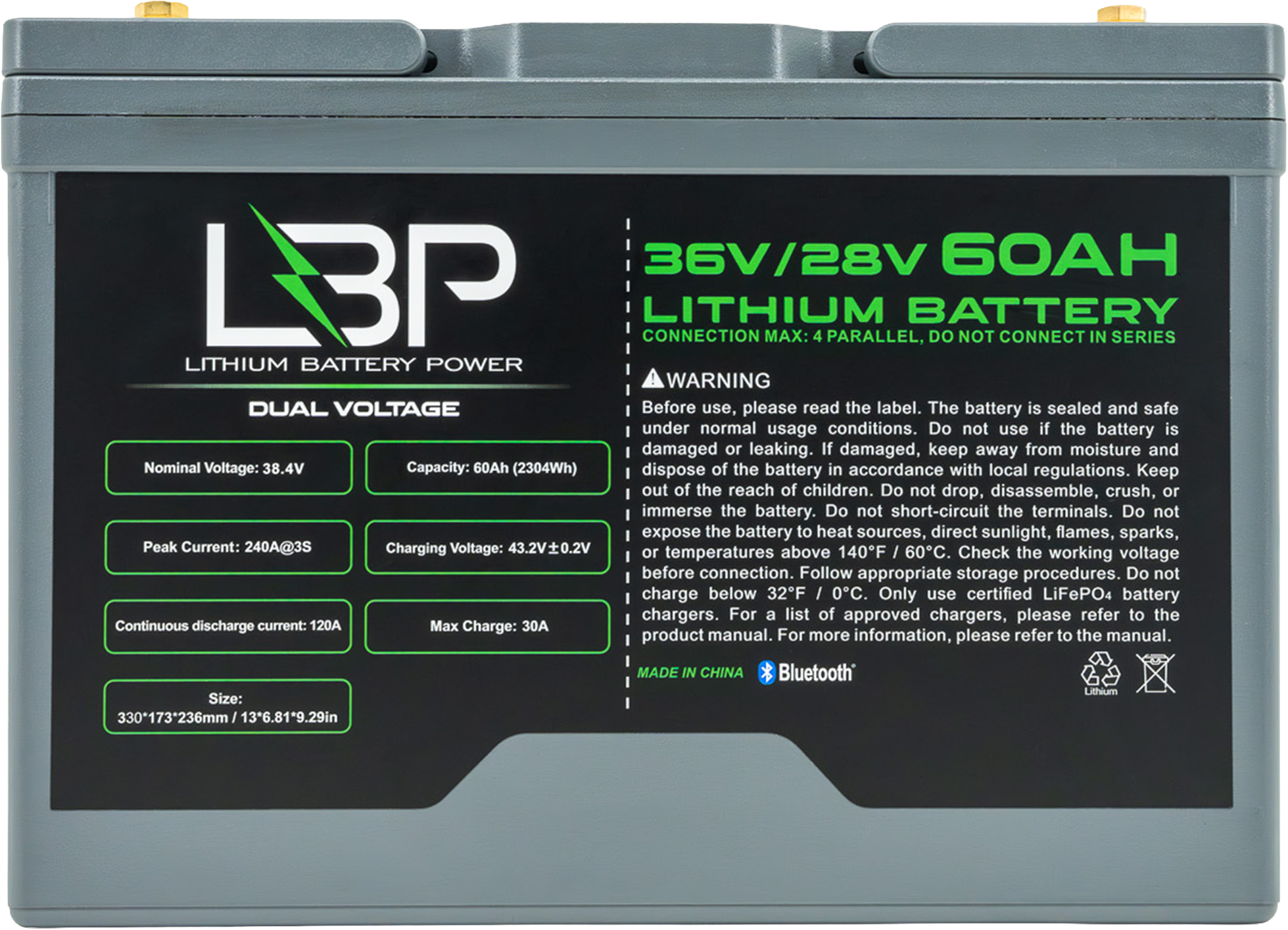

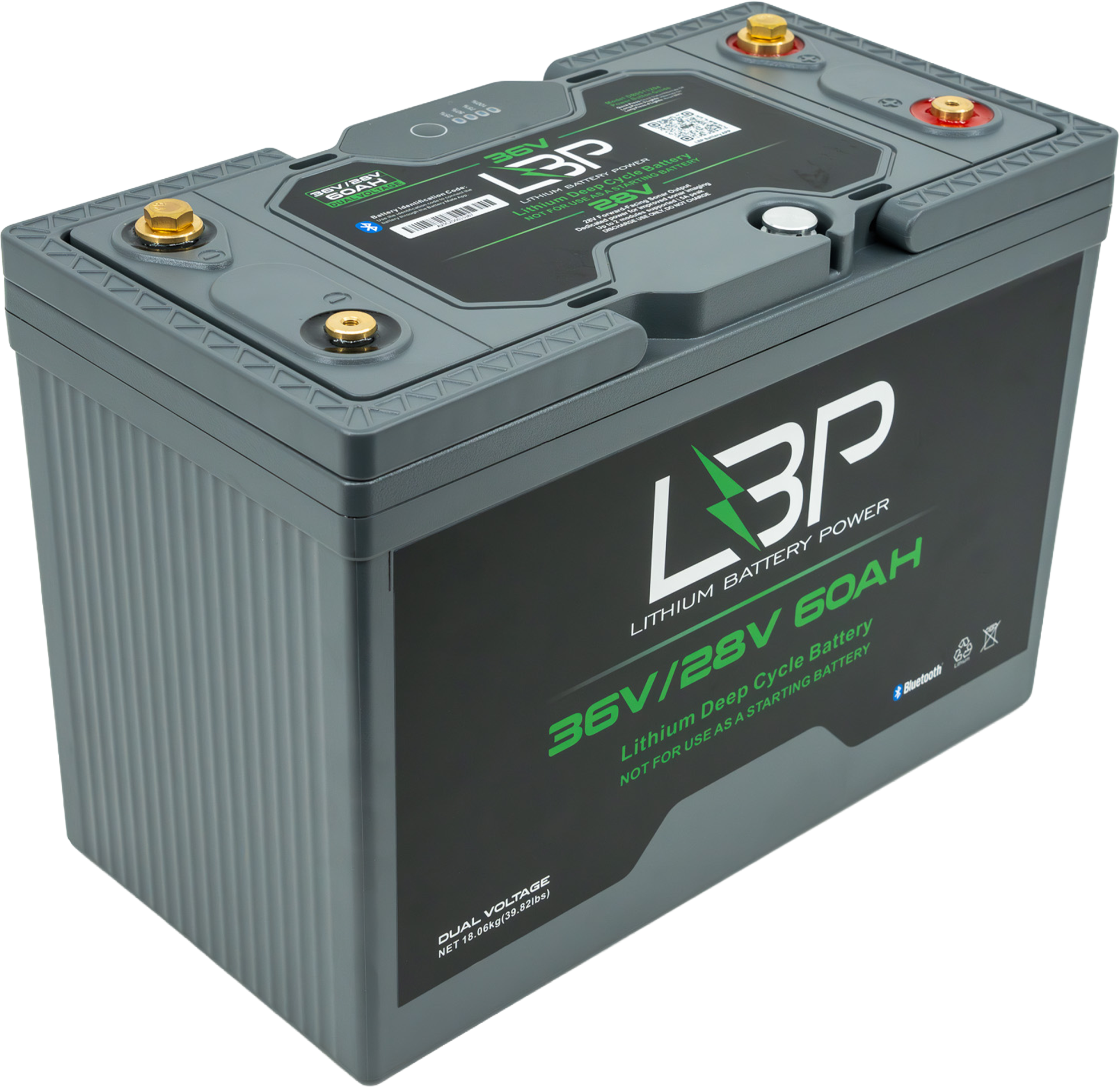

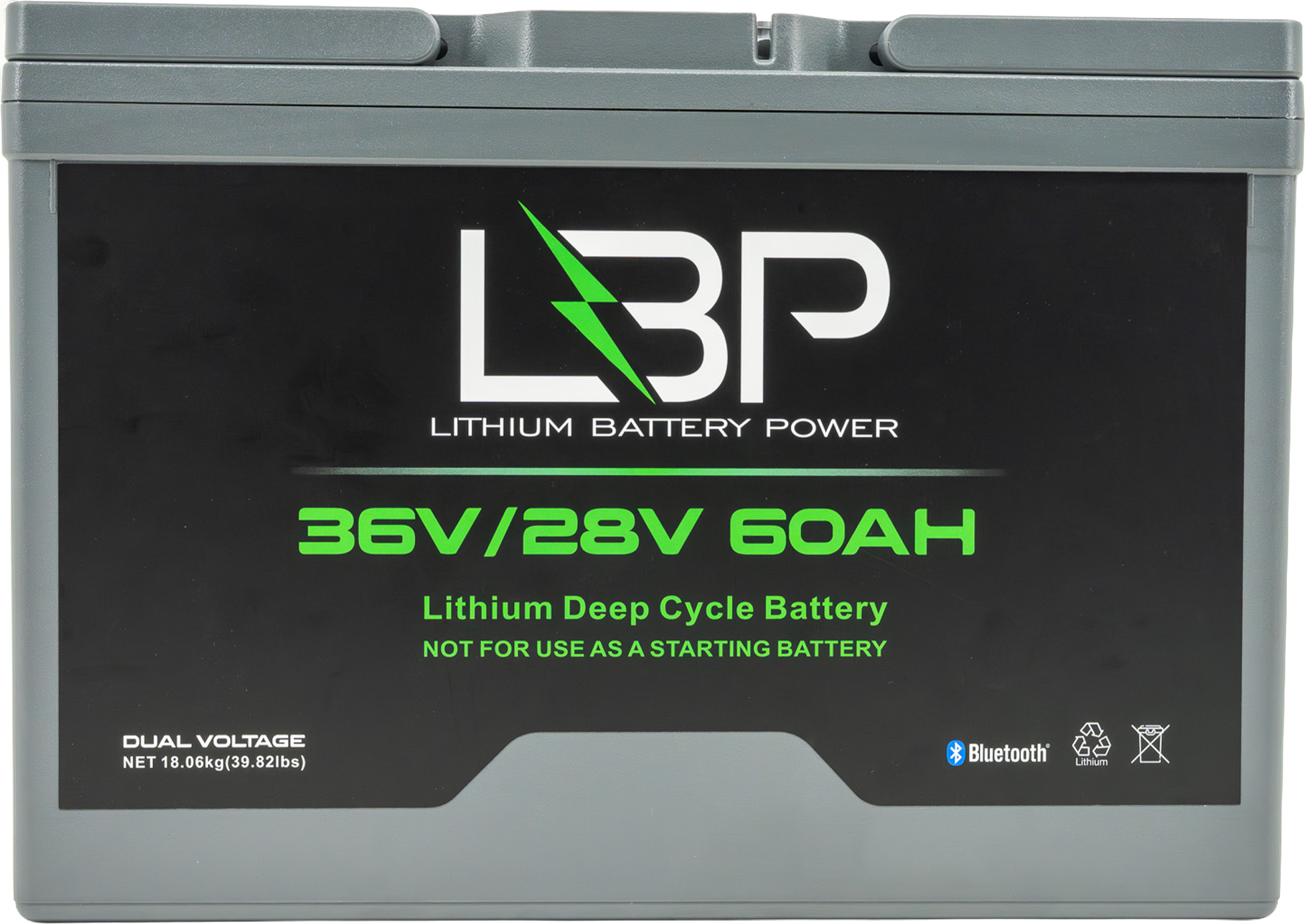

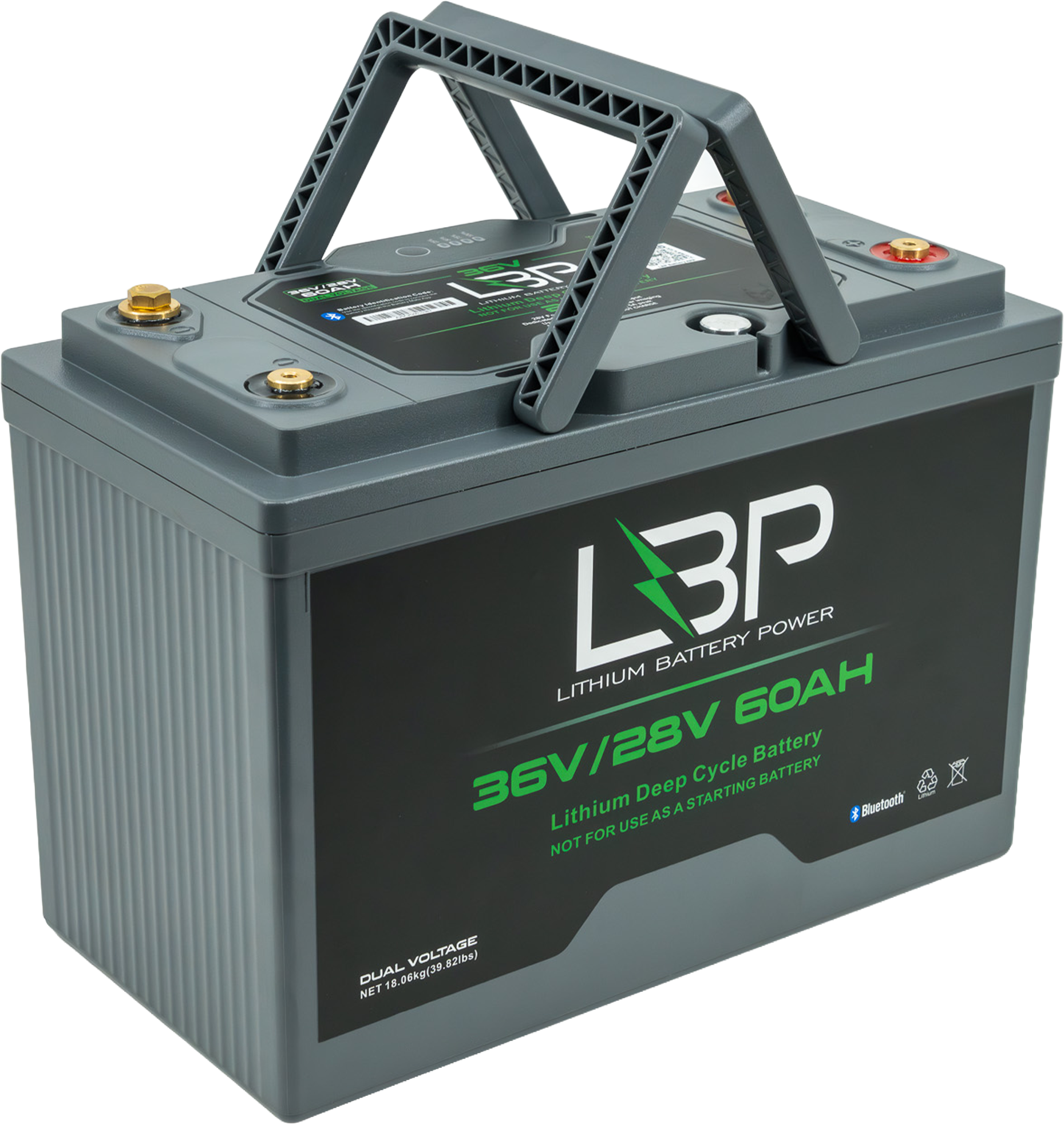

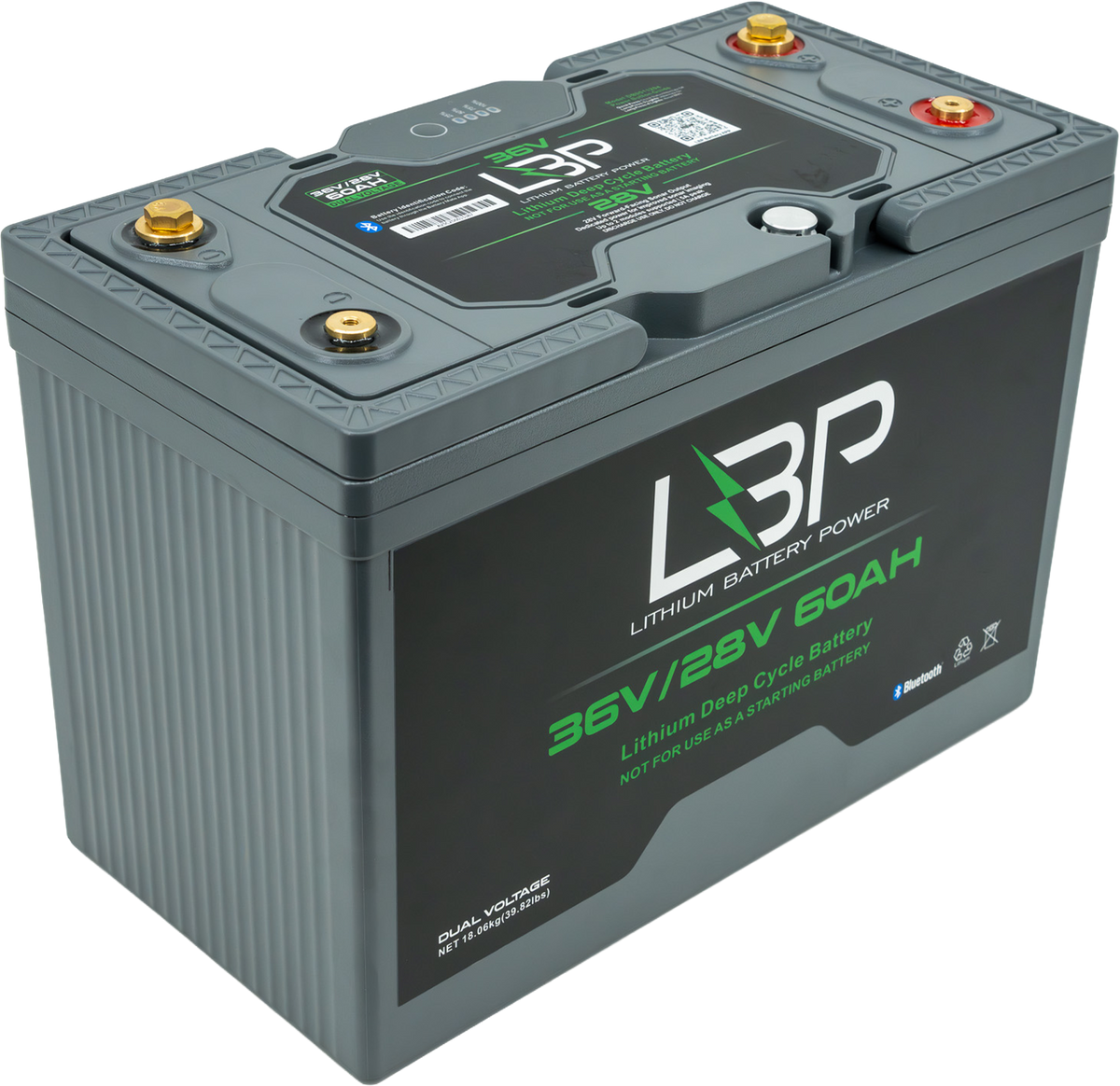

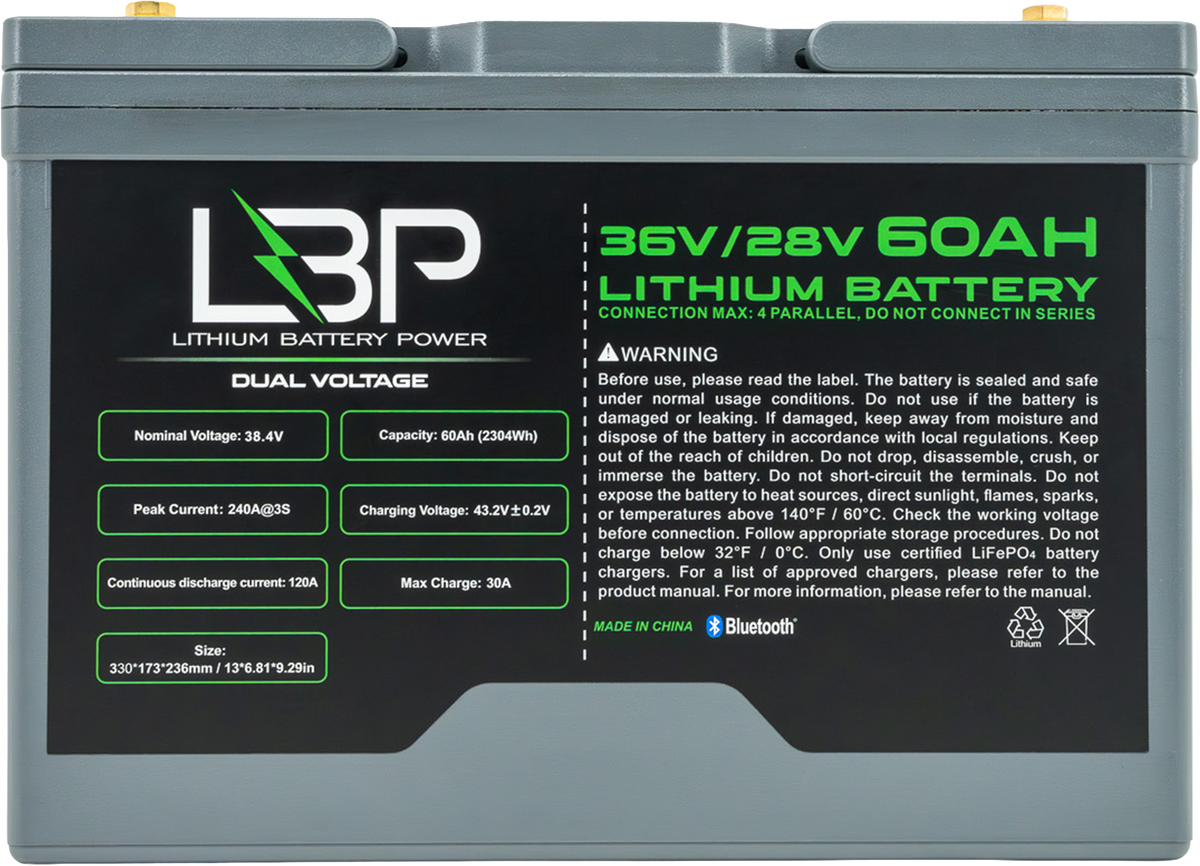

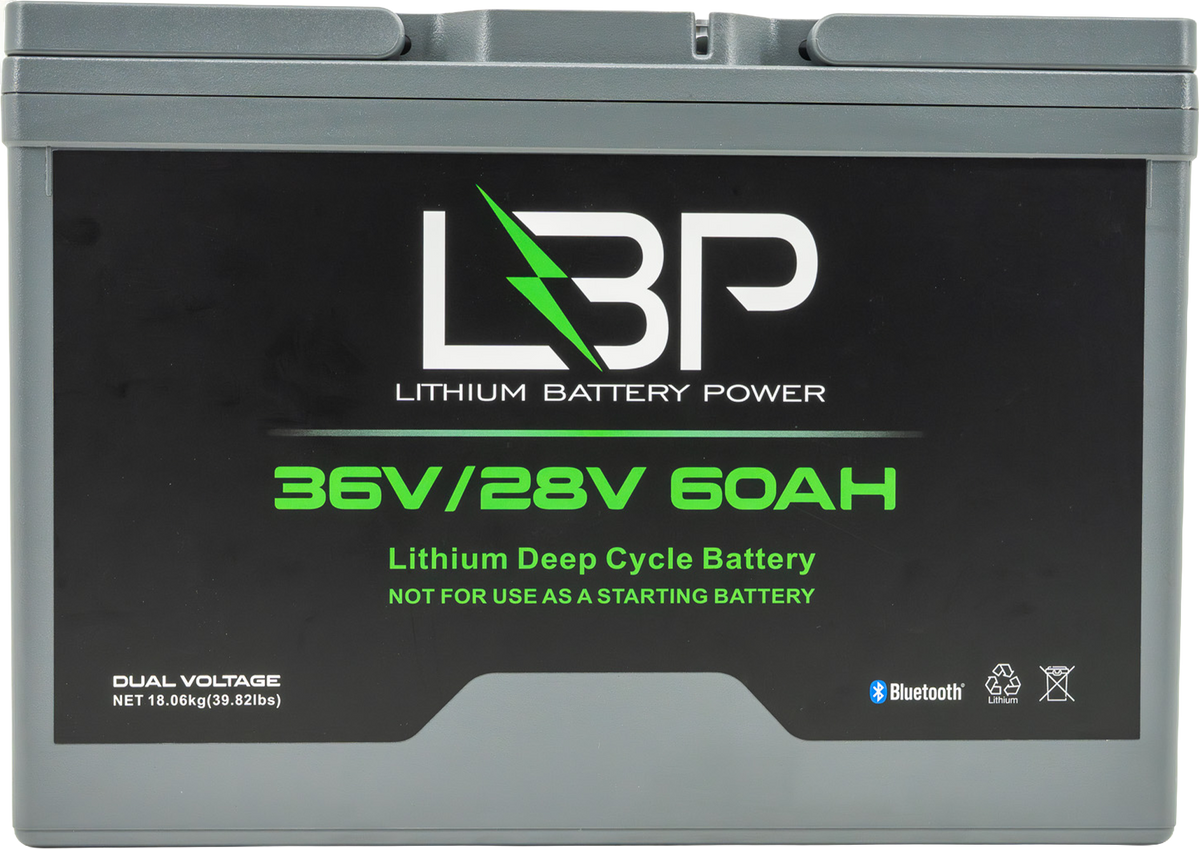

LBP 36V/28V 60Ah Dual terminal Trolling Motor Kit V1G
One LBP 36V 60Ah replaces three traditional lead acid or AGM batteries and takes more than 50 kilograms off the boat while running longer. Two of them in parallel give 120Ah for a longer day on the water.
The second terminal is the reason this battery exists. A dedicated 28V 5A lithium supply feeds forward facing sonar off its own terminal rather than off the trolling motor bank. The higher voltage cuts electrical noise and voltage drop, lowers current draw, keeps the unit cooler, and takes the trolling motor's interference out of the picture, which is what sharp imaging late in the day depends on.
The kit ships as three parts:
- LBP 36V/28V 60Ah Dual Terminal Lithium Battery V1G
- LBP 36V 10Ah IP65 Lithium Battery Charger
- LBP Custom Lithium Battery Tray, Group 31-GW V2
The specification below is for the battery.
Specification
| Nominal voltage | 38.4V |
| Rated capacity | 60Ah |
| Max charge voltage | 42.6V |
| Discharge cut-off voltage | 30V |
| Max charge current | 30A |
| Max continuous discharge current | 120A |
| Max pulse discharge current | 240A for 5 seconds |
| Weight | 39.8 lbs (18.06 kg) |
| Dimensions | 13in x 6.8in x 9.2in (330mm x 173mm x 235mm) |
| Group size | Group 31 |
