LBP 24V 75Ah Bluetooth Trolling Motor Lithium Battery Kit
The 24V 75Ah BT trolling motor lithium battery kit includes everything you need to upgrade any 24V trolling motor to lithium power. With this kit, you gain the ability to troll all day and easily monitor your charge levels via Bluetooth.
This kit replaces 2 regular lead acid batteries with one lithium battery, freeing up lots of extra weight and space in the process. Compatible with all makes and models of marine trolling motors.

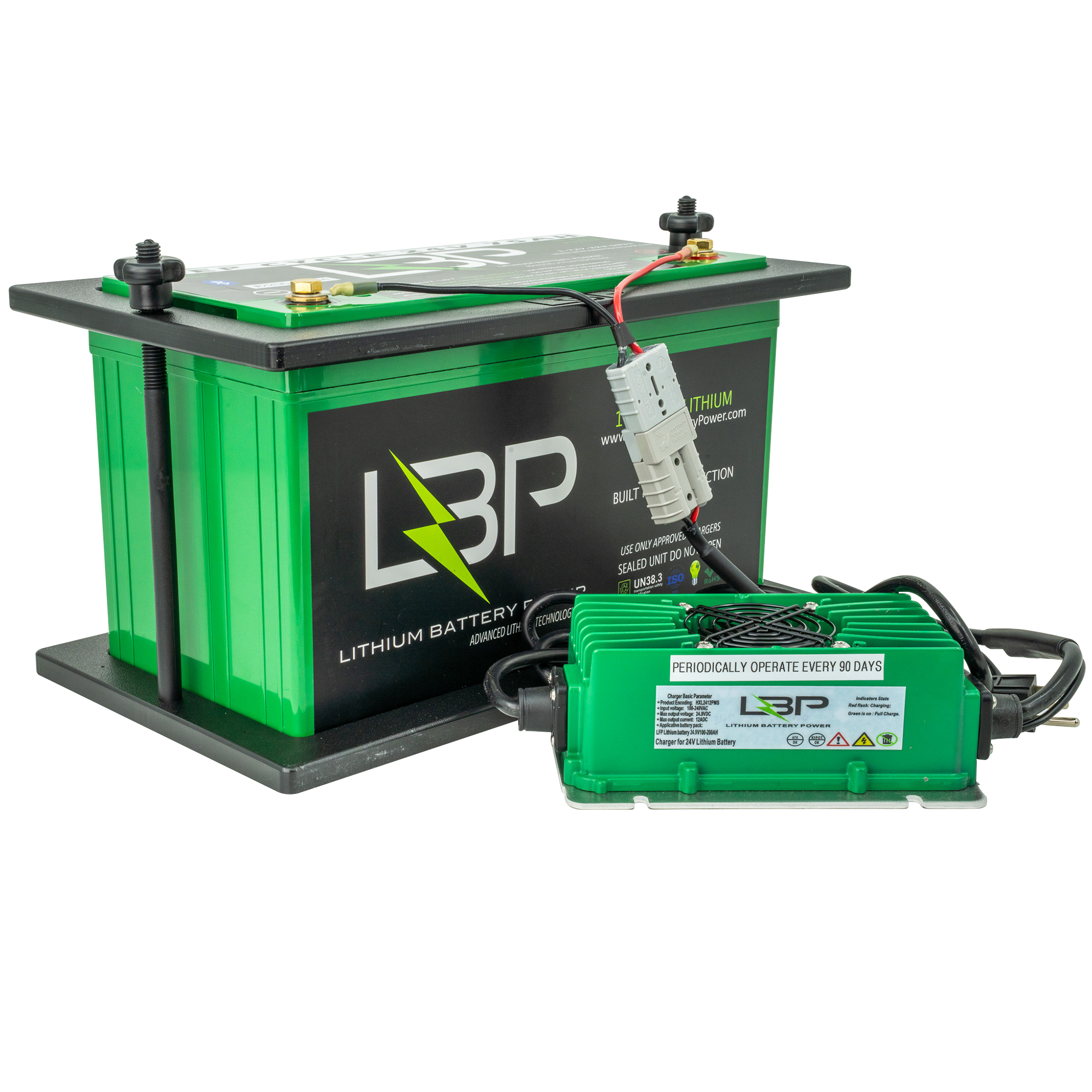

Package Includes:
-
1 x LBP 24v 75 ah Bluetooth Lithium Battery – Ideal as a trolling motor battery
-
1 x LBP 24v 12 Ah IP65 Waterproof Lithium Battery Charger – Fast, efficient, and built tough for any condition. Compatible with other li-ion battery chargers.
-
1 x LBP Custom Group 31 Waterproof Battery Tray – Secure your lithium battery in rugged environments with this heavy-duty battery tray.
LBP 24V 75Ah BT Features
- >4000 Cycles at 80% depth of discharge
- Create systems 24-1000 Volts
- Series and/or Parallel operation
- Automatic system cell balancing
- IP56 water and dust resistant Group 31 case
- Temperature monitoring
- Exceptional voltage stability
- Rugged mechanical design
- Maintenance free
- No hydrogen generation or gassing
- <70% the weight of similarly sized SLA batteries
- Stock available for quick delivery in US or worldwide
-
Attributes
Details
Nominal Voltage
25.2V
Nominal Capacity @ 1C
90Ah
Charge Voltage
17.5V - 29.4V
Charge Current: Recommended
10A
Max Charge Rate
Discharge Voltage Minimum
15A
17.5V
Discharge Current Max (Constant)
120A
Pulse Current
300A
Weight
26.24 lb
BCI Group Number
Group 31
Terminals (TPI)
M8 x 1.25
Dimensions L x W x H (w/Terminals)
13.25" x 6.7" x 8.5"
Operating Temperature
Charge: 32°F to 113°
Discharge: -4°F to 140°F
Storage Temperature
-40°F to 122°F
