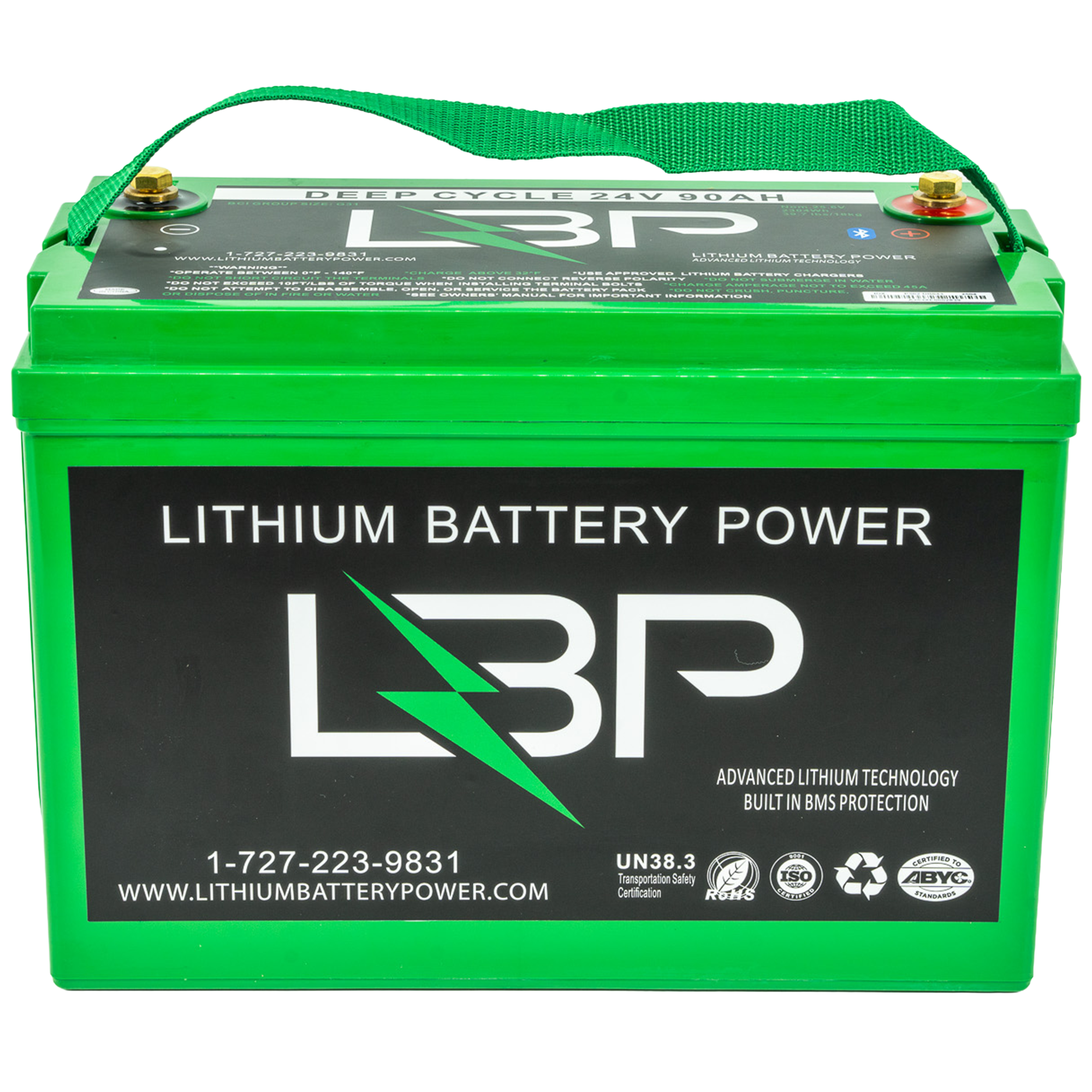

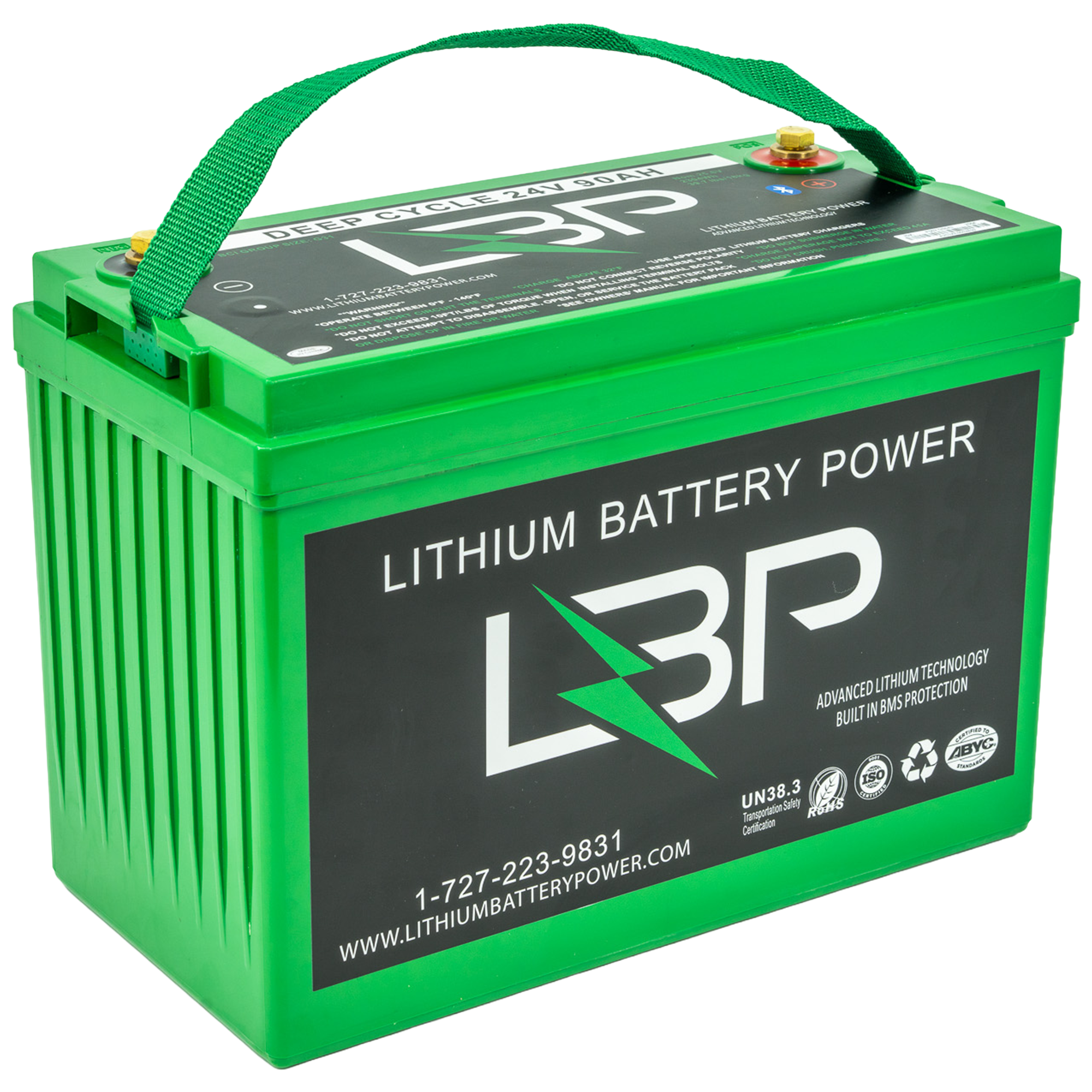

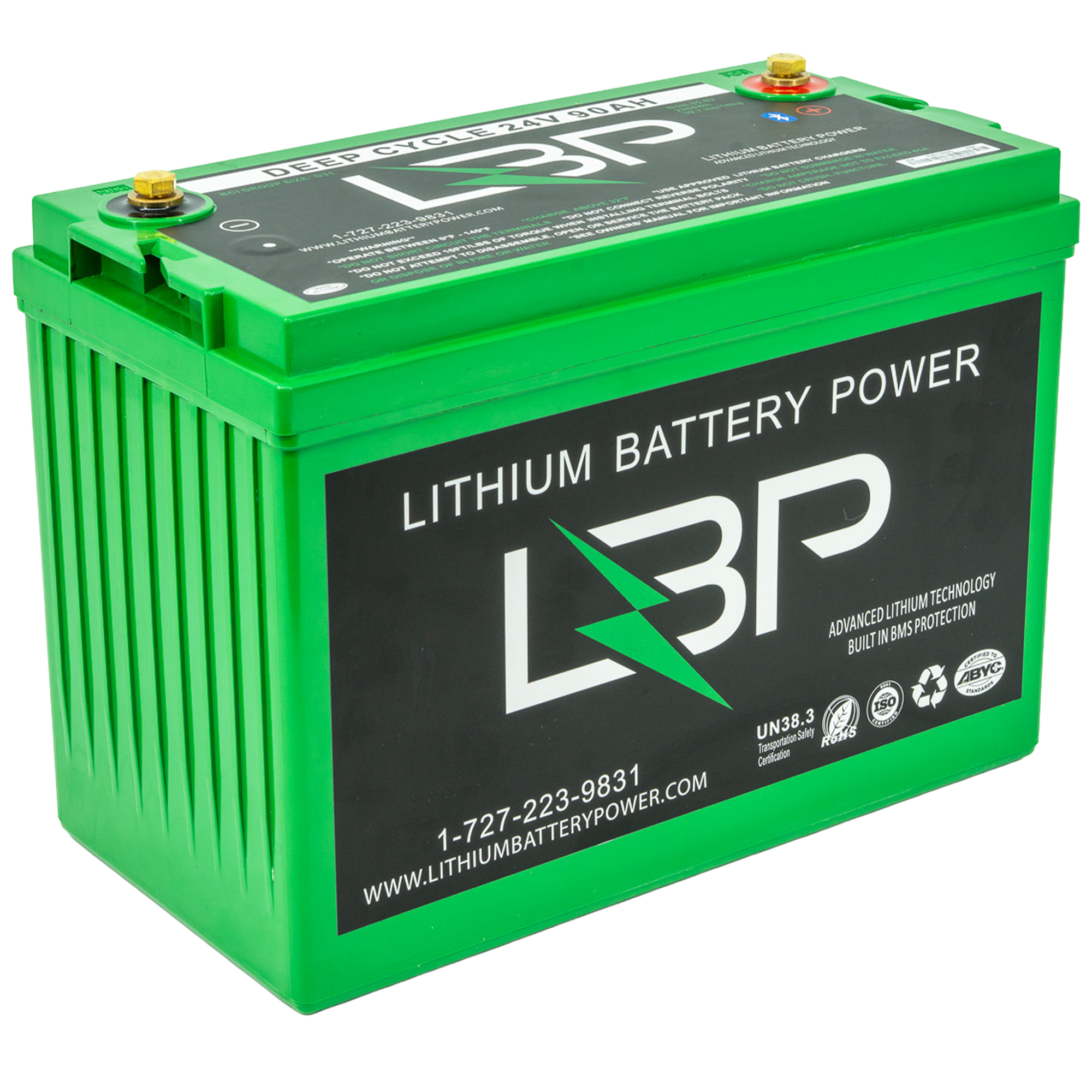

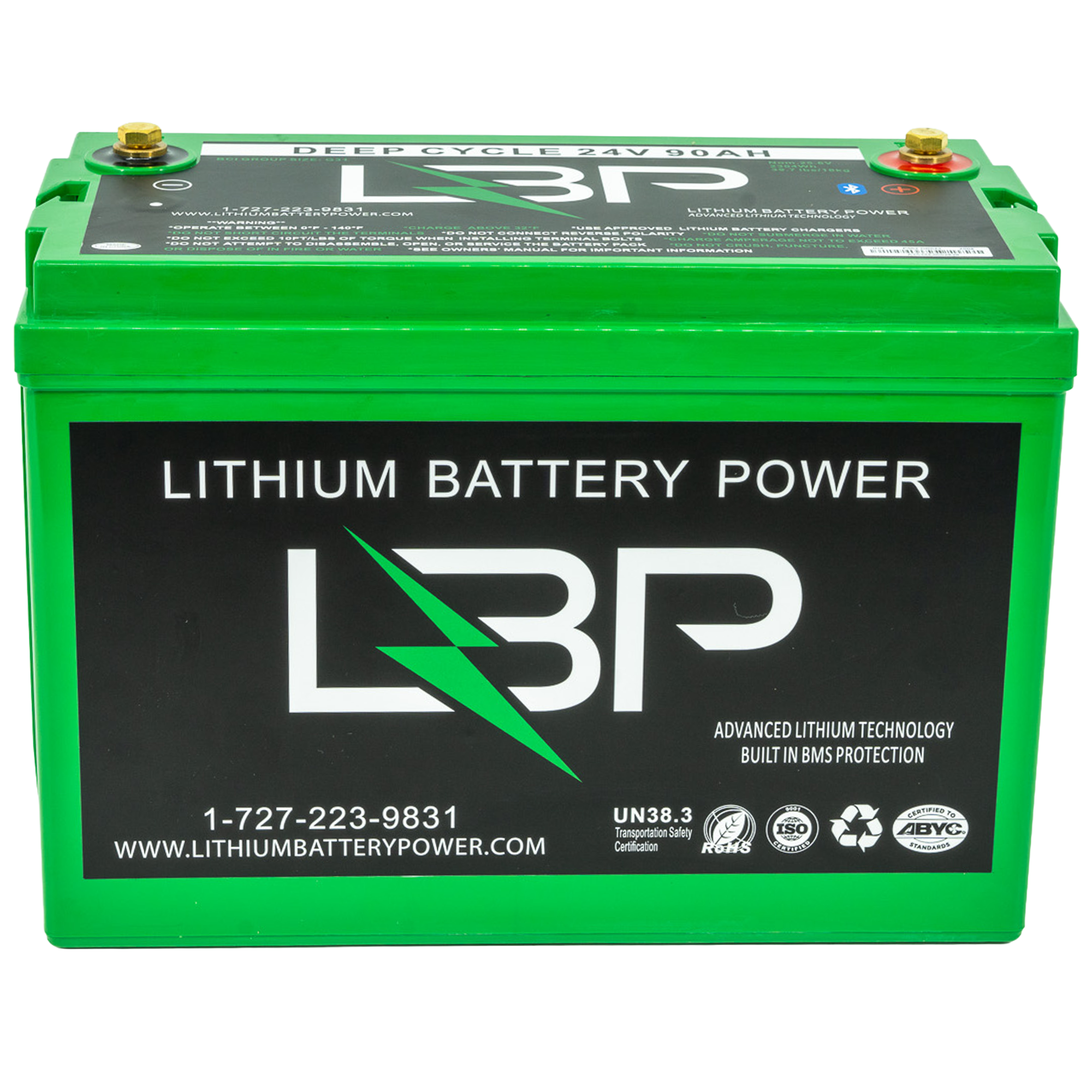

24V90Ah- Deep Cycle Lithium Battery
Elevate your power with the LBP 24V90Ah Lithium Battery. Designed with advanced chemistry and Bluetooth monitoring, this lightweight, deep-cycle battery ensures safe, reliable performance and a higher charge rate for trolling motors and more. With a built-in BMS that enhances battery safety, it’s the perfect plug-and-play upgrade from heavy lead-acid or AGM batteries. Boost efficiency, reduce weight, and optimize your setup today!
This kit replaces 2 regular lead acid batteries with one lithium battery, freeing up lots of extra weight and space in the process. Compatible with all makes and models of marine trolling motors.
|
NOMINAL VOLTAGE |
25.6V |
|||
|
RATED CAPACITY |
90Ah |
|||
|
CHARGE VOLTAGE/FULL CHARGE |
28.4 ± 0.2 |
|||
|
DISCHARGE CUT-OFF VOLTAGE |
20V |
|||
|
RECCOMENDED CHARGING CURRENT |
15A |
|||
|
OVER-CURRENT PROTECTION IN CHARGING |
45A |
|||
|
MAX. CONTINUOUS DISCHARGING CURRENT |
90A |
|||
|
OVER-CURRENT IN DISCHARGING |
200A |
|||
|
PULSE-CURRENT |
216A |
|||
|
SHORT CIRCUIT PROTECTION |
YES |
|||
|
WEIGHT |
39.7 LBS |
|||
|
DIMENSION (LxWxH) |
13” X 6.8” X 9.5” |
|||
|
CHARGING PROTECTION |
HIGH TEMP. |
113° F |
RECOVER |
104° F |
|
LOW TEMP. |
32° F |
RECOVER |
41° F |
|
|
DISCHARGING PROTECTION |
HIGH TEMP. |
140° F |
RECOVER |
122° F |
|
LOW TEMP. |
-4° F |
RECOVER |
14° F |
|
